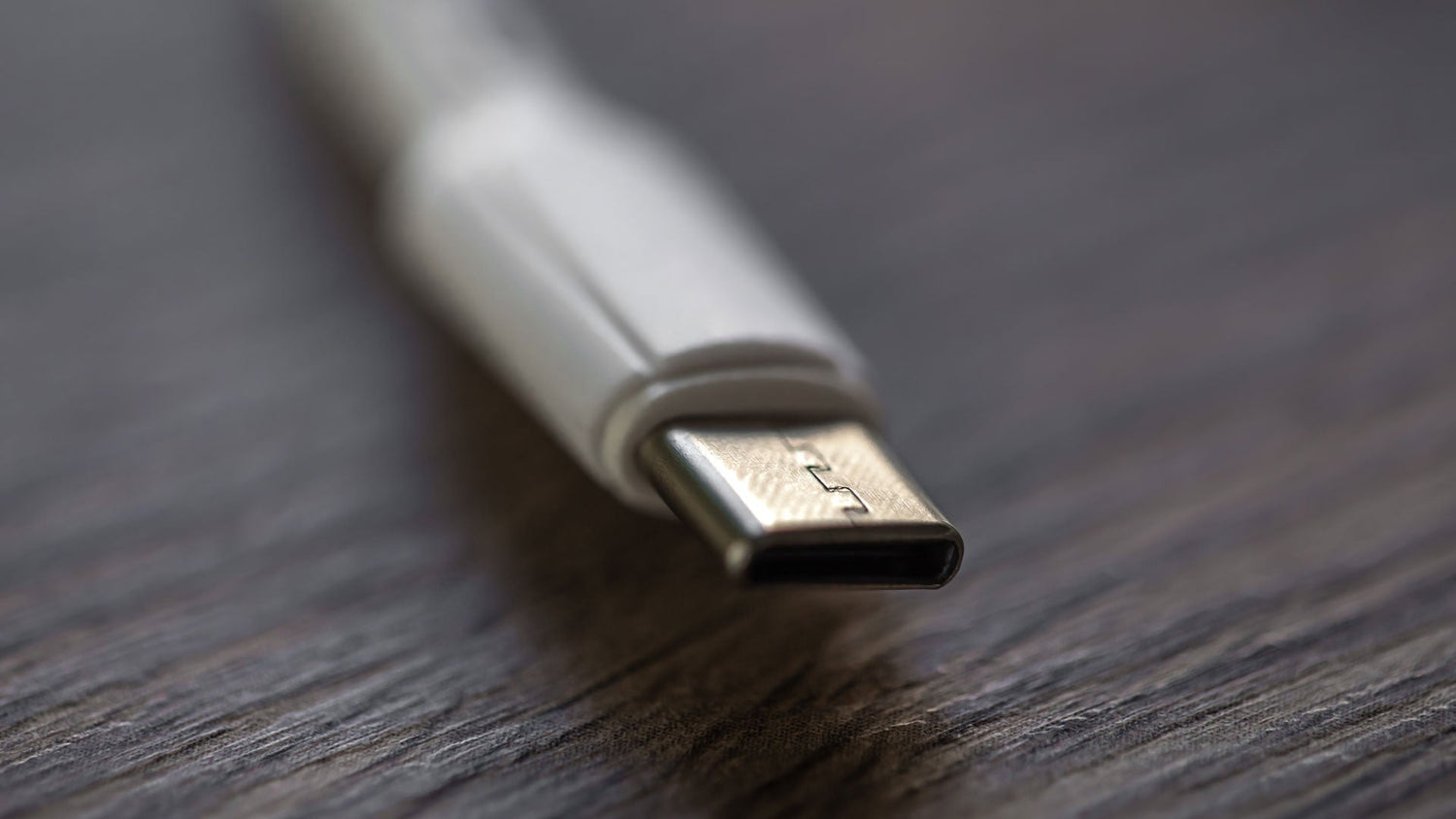

Phone Fast Charging Protocols: USB-PD, QC, and PPS Compared

Phone Fast Charging Protocols

In today's digital age, smartphones have become an essential part of our lives. And let's face it, we've all been in a situation where we're running low on battery and need a quick power-up. Thankfully, many modern smartphones come with fast-charging capabilities. Gone are the days of waiting hours for our phones to charge. With fast charging technologies, our devices can be juiced up in a fraction of the time it took older models. This is a huge plus, especially considering how power-hungry our smartphones have become with their high-performance processors and feature-rich apps.


However, there's a bit of a catch. The world of fast-charging is a bit of a maze. Hardware manufacturers use a variety of fast-charging standards. Some of these standards play well together, while others are like oil and water.


If you've ever been confused about which fast charging standard is right for your device or how these standards differ from one another, you're in the right place. Read on to unlock the secrets of fast charging standards and learn how to make the best choice for your smartphone.

Understand QC, PD and PPS

Fast charging is exactly what it sounds like—a way to charge your devices at a much quicker pace. By optimizing the charging process within a safe load range, it significantly reduces the time you spend waiting for your device to power up. As our devices have evolved, they've become more powerful and, in turn, hungrier for energy. Consequently, the chargers of yesteryear, with their meager 5W or 12W outputs, are left in the dust, unable to meet the escalating need for speed in the charging process.

Today, there are several cutting-edge fast-charging technologies that have taken the market by storm. One of the most well-known is Qualcomm’s Quick Charge (QC). A proprietary fast charging technology developed by Qualcomm Technologies, Inc., QC operates primarily on devices equipped with Qualcomm Snapdragon processors. This technology has been around for a while and has been adopted by numerous smartphone manufacturers. It allows for a substantial increase in charging speed, getting your device from low battery to a usable level in no time.

Smartphone Charging

Another major player is USB-IF’s USB Power Delivery (USB PD). USB PD is a standard that's not only about fast charging but also about flexibility. It can adjust the power output according to the device's needs, which makes it suitable for a wide range of devices, from smartphones to laptops. This means you can use the same charger for multiple devices, as long as they support USB PD.

Then there's Programmable Power Supply (PPS). PPS is a relatively new addition to the fast-charging scene. It offers a more intelligent and precise way of delivering power. PPS can adapt to the battery's charging requirements at different stages, ensuring not only a fast charge but also a safe and efficient one. This helps to extend the lifespan of your device's battery while still providing that much-needed quick power boost.

What are the differences between QC, PD and PPS?

Now that you've got a good understanding of what fast charging is about, it's important to know that not all fast charging standards are created equal. The three standards we've just discussed, namely QC, PD and PPS, each has its unique features, advantages, and limitations. Let's take a look at how they stack up against each other.

1.Qualcomm Quick Charge (QC)

How it works: QC uses a specific voltage and current adjustment mechanism. It is designed to quickly charge devices, especially smartphones. At the start of charging, it might increase the voltage to rapidly boost the battery level. As the battery gets closer to full, it adjusts the power input to protect the battery.


Advantages:

Mature Technology and Ecosystem: QC is one of the earliest fast charging technologies, and it has a relatively mature technology and ecosystem. There are many third-party chargers and accessories on the market that support QC, providing users with more choices in terms of price and product types. The wide availability of QC chargers makes it easier for users to purchase and replace chargers when needed.
Cost-Effectiveness: In general, QC chargers are relatively more affordable compared to some chargers that support PPS or high-power PD. This means you can get the convenience of fast charging without emptying your wallet.


Limitations:

Narrow Power Range: Although QC has continuously improved its charging power with version upgrades, the overall power range is still relatively narrow compared to PD.
Coarse Voltage Adjustment: QC mainly increases the charging speed by boosting the voltage, and the voltage adjustment granularity is relatively coarse.
Greater Impact on Battery Life: Although QC has some optimization measures, the high-power charging mode still has a greater impact on the battery life of the device compared to PPS and PD.

2.USB Power Delivery (USB PD)

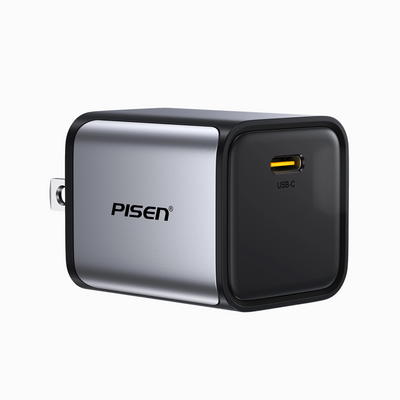

USB-PD-Charger

How it works:

USB PD is a flexible standard that can adjust both the voltage and the amperage of the power output. It uses a communication protocol between the charger and the device. This allows the charger to “talk” to the device and figure out exactly how much power the device needs at any given time. For example, if you're charging a laptop, the charger can supply a higher voltage and current compared to when charging a smartphone.


Advantages:

High Versatility: USB PD is a universal standard developed by the USB Implementers Forum (USB-IF) and is not limited to specific device types or manufacturers. With USB PD, you can charge a wide range of devices, from smartphones, tablets, to laptops. This means that a single USB PD charger can serve multiple distinct device types, providing an incredibly convenient charging solution.


Broad Power & Voltage Scalability: USB PD supports a wide range of power levels, from 5 watts up to 100 watts or more. This makes it suitable for charging different devices with various power requirements. In terms of voltage, it supports multiple voltage levels, such as 5V, 9V, 12V, 15V, and 20V.


Bidirectional Power Flow: USB PD allows for bidirectional power flow, meaning devices can both send and receive power. This feature is useful for applications such as charging a smartphone from a laptop or using a laptop to power other devices.


Limitations:

Lack of Specialized Optimization: USB PD's universal nature means that it does not have the same level of specialization for a particular type of device as QC does for smartphones. QC has been developed with in-depth knowledge of the power requirements and charging characteristics of smartphones, and this specialization allows for better tuned charging performance. USB PD, being a more general purpose standard, may not be able to provide the same level of performance when it comes to charging smartphones compared to QC.

3.Programmable Power Supply (PPS)

How it works: PPS functions similarly to regular USB PD, yet it exhibits a more intelligent approach. During the charging process, both PPS and standard USB PD rely on two-way communication between the charger and the device to negotiate the charging rate. However, PPS takes this a step further. With PPS, the electrical charge rate adjustments occur at a much higher frequency, enabling extremely precise current control. This intelligent fine tuning allows the device to be charged at the most optimal voltage-amperage combination. Consequently, PPS not only enables faster charging of the device but also helps in minimizing heat generation and stress on the battery.


Advantages:

Battery-Friendly Precision Charging: PPS offers a high level of precision in voltage and current adjustment. This ability to precisely control the charging process helps in preventing over-charging and over-heating, which are common causes of battery degradation.
Higher Charging Safety: PPS supports multiple safety protection mechanisms, including overcurrent, overvoltage, and overtemperature protection. It uses a pulsation system to guarantee the safety of the charging process. Though PD and QC also have certain protection functions, the safety mechanism of PPS is more comprehensive and fine-grained.


Limitations:

Narrower Compatibility: Compared to PD and QC, PPS is a relatively new and less well-known standard. Although it is based on the USB PD protocol, it is not as widely supported as PD. It's mainly present in some high-end smartphones and specific chargers. As a result, there may be fewer PPS-compatible chargers and devices available on the market currently.
Higher Cost: The implementation of PPS requires more advanced chip design and charging circuity, which can increase the cost of chargers and devices. This may lead to higher prices for consumers compared to QC and PD products.

How do you choose the right charger?

In our fast-paced digital lives, a reliable charger is a must-have. With a plethora of fast-charging standards out there, the process of choosing the perfect charger can seem daunting. But worry not! This guide will walk you through everything you need to know to make an informed decision.

1.Device-Specific Considerations

  • Power Requirements : Different devices have varying power needs. Laptops, for example, typically require a higher wattage charger compared to smartphones. Understanding your device's power requirements ensures that you don't under- or over-charge it.



  • Charging Standard Compatibility : Knowing which charging standard your device adopts is vital. As mentioned earlier, Android phones with Qualcomm Snapdragon processors often work best with QC-supported chargers. iPhones and many modern Android devices with USB-C ports are more compatible with USB PD chargers. Using a charger that aligns with your device's charging standard ensures optimal charging performance.

Compatible with iPhone and Android USB PD chargers

  • Multi-Device Compatibility : If you own multiple devices, it's highly beneficial to choose a charger that can work with all of them. Chargers that support multiple charging protocols, such as those that are both QC- and PD-compatible, are a great option since they are more versatile and future-proof. This way, whether you're charging your smartphone, tablet, or laptop, you can use the same charger, eliminating the need for multiple chargers and reducing clutter.

2.Cost

Beyond taking into account the specific requirements of your devices, your budget is a crucial factor in determining which charger to select. Chargers with advanced features and support for multiple high-speed charging protocols tend to be more expensive. However, if you're on a tight budget, there are still plenty of reliable chargers available that can offer a decent charging speed at a more affordable price.

Conclusion

In conclusion, the journey to finding the perfect Phone Fast Charging is all about identifying your needs. It's not merely about settling for any charger; it's about finding the one that meshes seamlessly with your devices, lifestyle, and budget. With this knowledge, you're all set to find the perfect charging companion!
